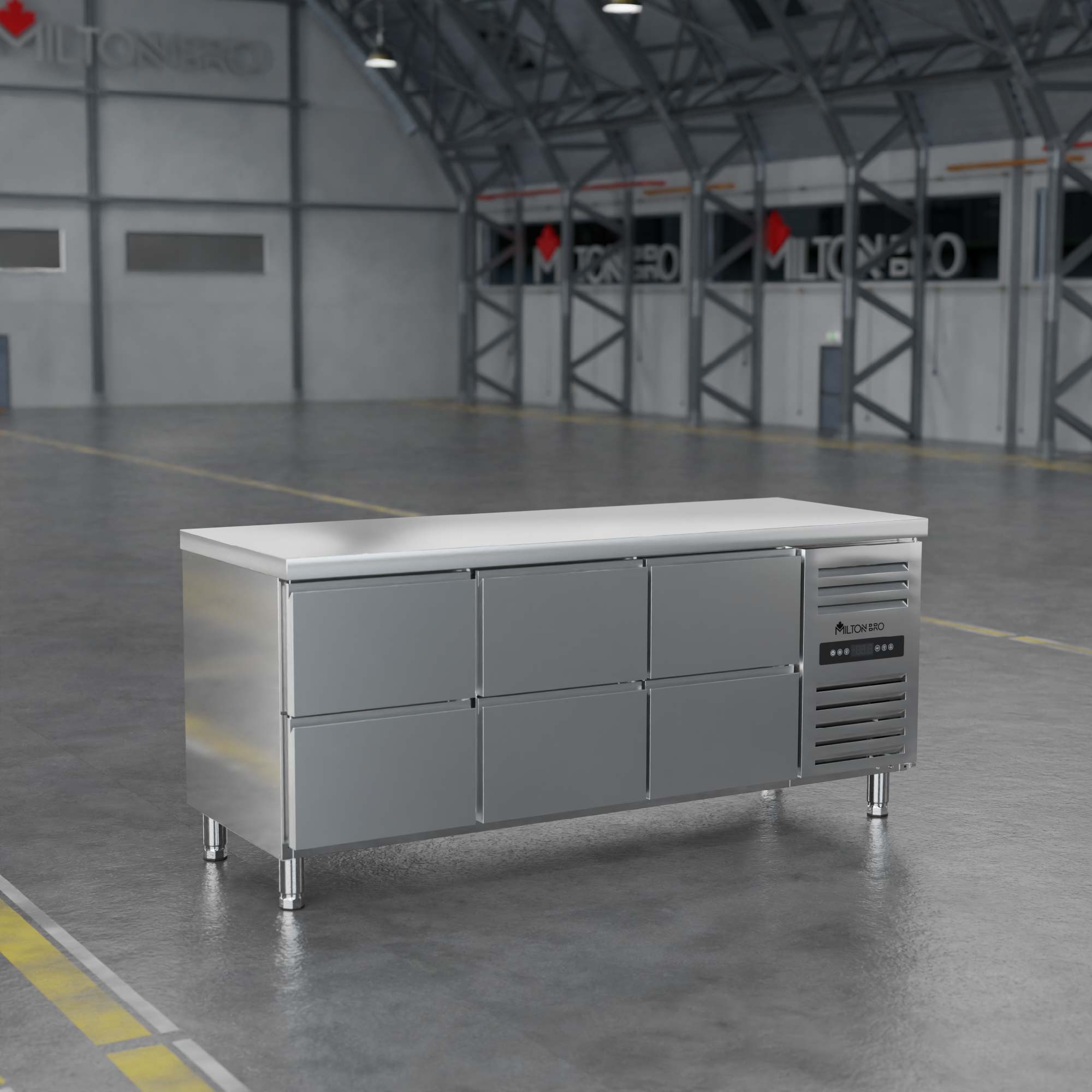

6-Drawer Undercounter Freezer

Performance & Capacity

• Temperature Range: -10°C to -22°C (Commercial-grade deep freeze)

• Total Capacity: 450 liters

• Drawer Configuration: 6 heavy-duty stainless steel drawers

• Refrigerant: Environmentally-friendly R290

Dimensions

• Internal: 1870×700×730mm (H×W×D)

• External: 1910×760×910mm (including handles)

Technical Specifications

• Cooling System: Automatic freezer with forced air circulation

• Power Consumption: 485W

• Electrical Requirements: 220-240V, 50Hz, Single Phase

• Defrost System: Automatic

Construction & Features

• Cabinet Material: 304-grade stainless steel

• Drawer Material: Reinforced stainless steel baskets

• Control System: Digital touch panel (Milton/Exco)

• Optional Accessories:

  • Drawer locks (keyed or electronic)

  • Temperature alarm system

  • LED interior lighting

Physical Specifications

• Net Weight: 129.5kg

• Gross Weight: 145.5kg (packaged)

Energy Efficiency

• Daily Consumption: ≈3.8kWh (at -18°C ambient)

• Refrigerant Charge: 95g R290

Key Benefits
✔ Ultra-low temperature performance (-22°C capability)
✔ High-density storage with 6 full-extension drawers
✔ Commercial-grade durability (1.2mm stainless steel)
✔ Energy efficient operation with R290 refrigerant
✔ Smart temperature management with digital controls
